The autopsy of a Kemppi Minarc 200 evo: When "obsolete" is the final verdict

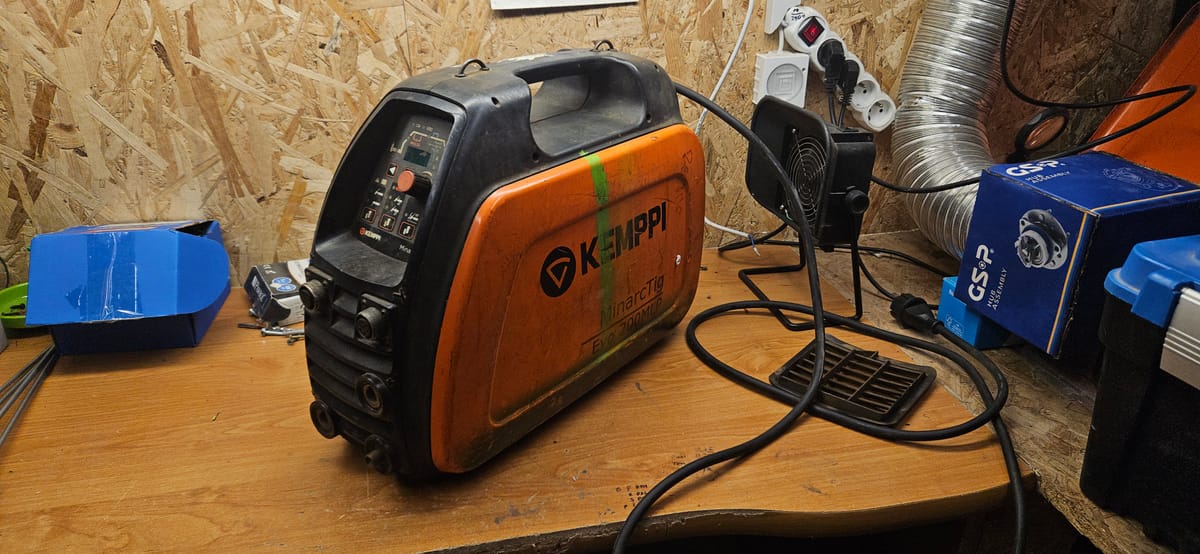

We’ve all been there. A friend drops off a piece of high-end gear with that hopeful glint in their eye and says, "It won't even turn on. You want to take a look?" This week, the patient on my bench was a Kemppi Minarc 200evo. I was genuinely excited to see if I could bring this beast back from the dead. Unfortunately, the path to repair is often paved with discontinued part numbers.

The welder was completely unresponsive—no fans, no display, no signs of life. My first move was to hit the forums. The general consensus among the repair community is that the Z001 main board is the usual suspect, specifically within its sensing circuitry.

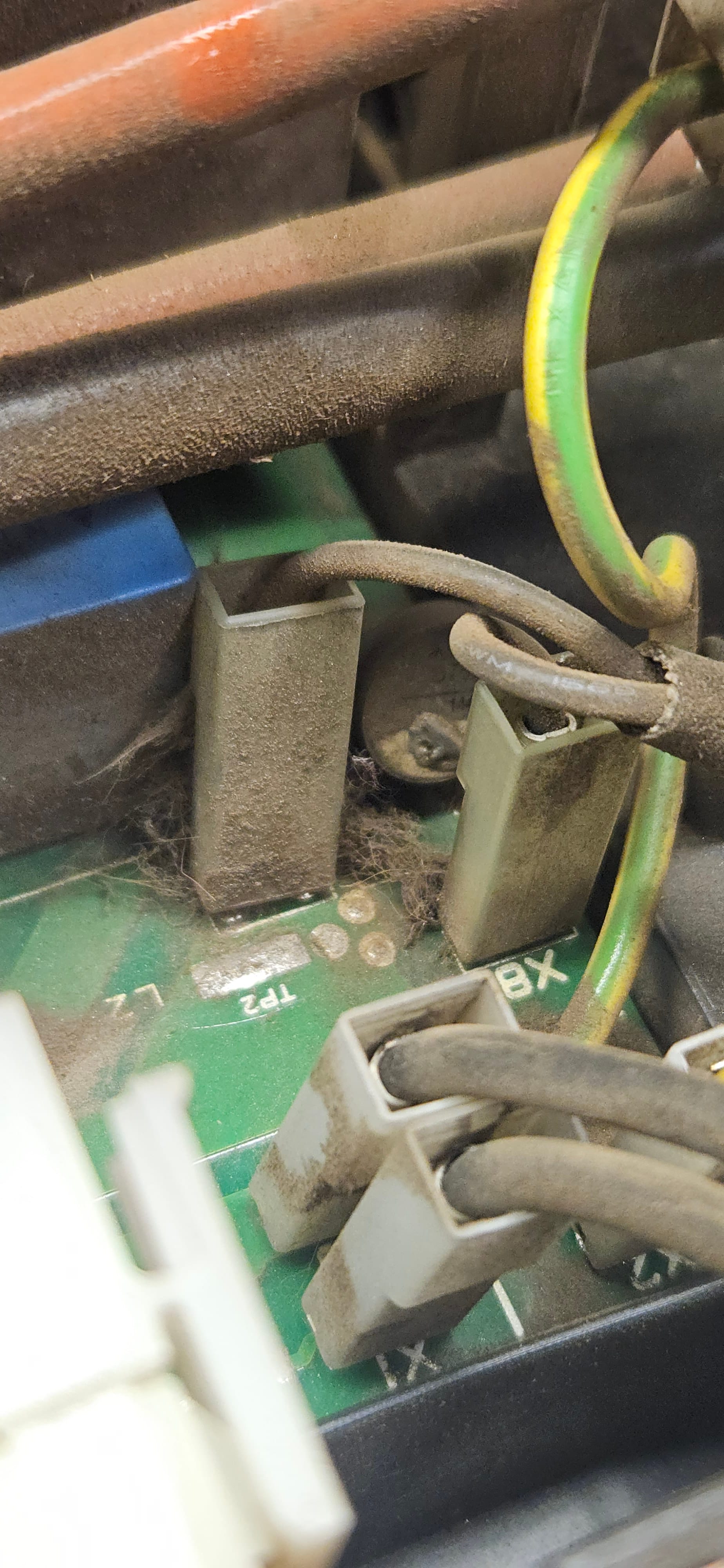

Upon opening the casing, I noticed some debris and dust buildup around the power switch board connectors. I gave everything a thorough cleaning and checked switch, transformer and other elements nearby - in theory everything was fine around here. The problem was deeper.

To determine if the control logic was fried, I decided to bypass the main power delivery. I disconnected the display board and hooked it up to my bench power supply on 24VDC.

(Un)fortunately, board powered on without issue.

This was a bittersweet discovery. It meant the "brain" of the welder was functional, but it wasn't receiving the necessary power from its dedicated transformer.

Following the traces

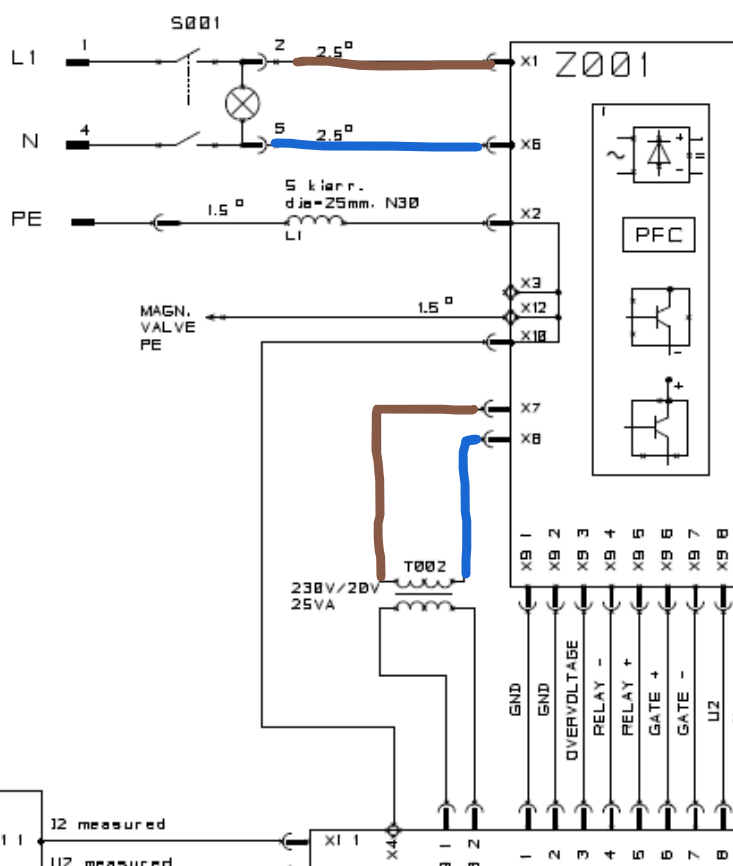

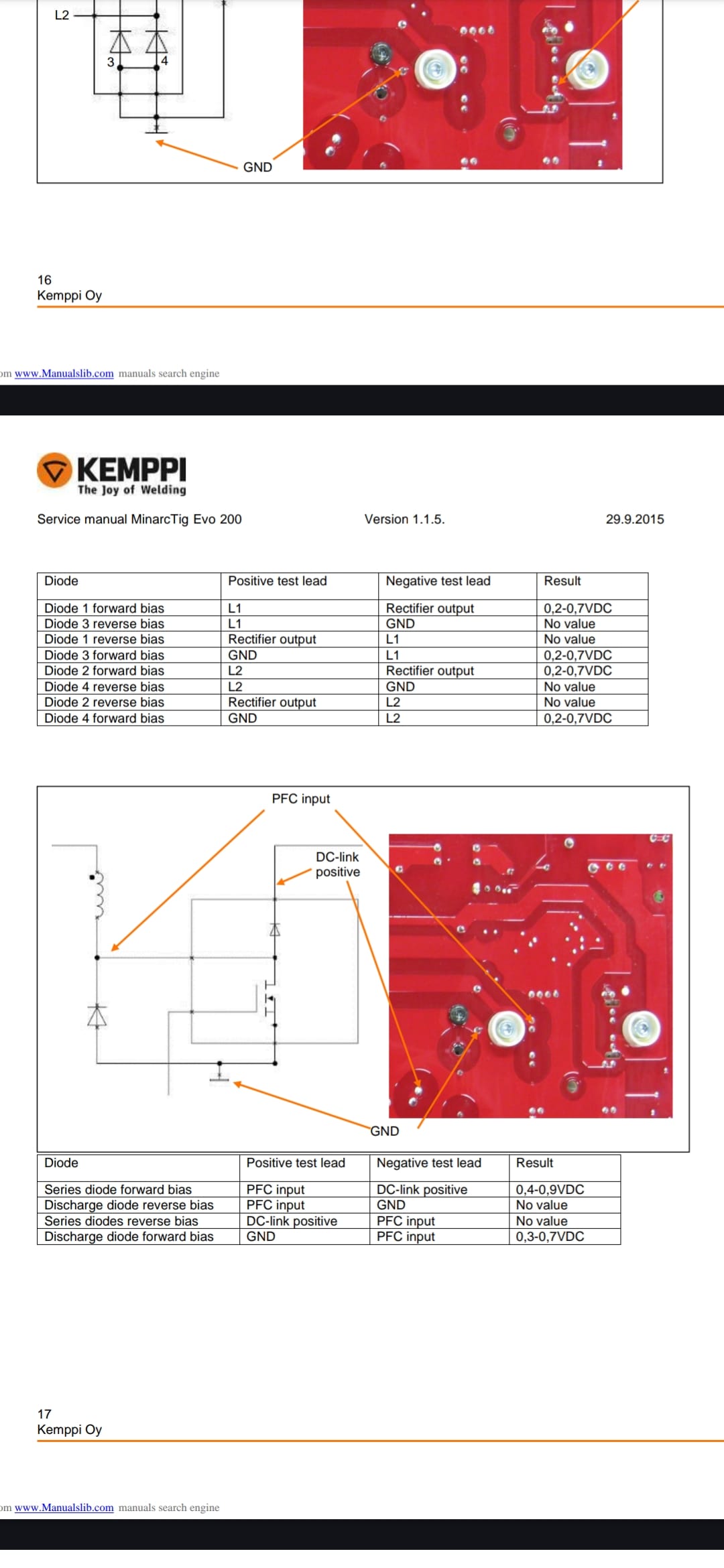

I managed to dig up the service manual, which surely should speed up repair process. The manual provided a checklist of measurement points on the PCB with expected values for a healthy unit. First module to check was Z001 mains rectifier, PFC and DC-link line.

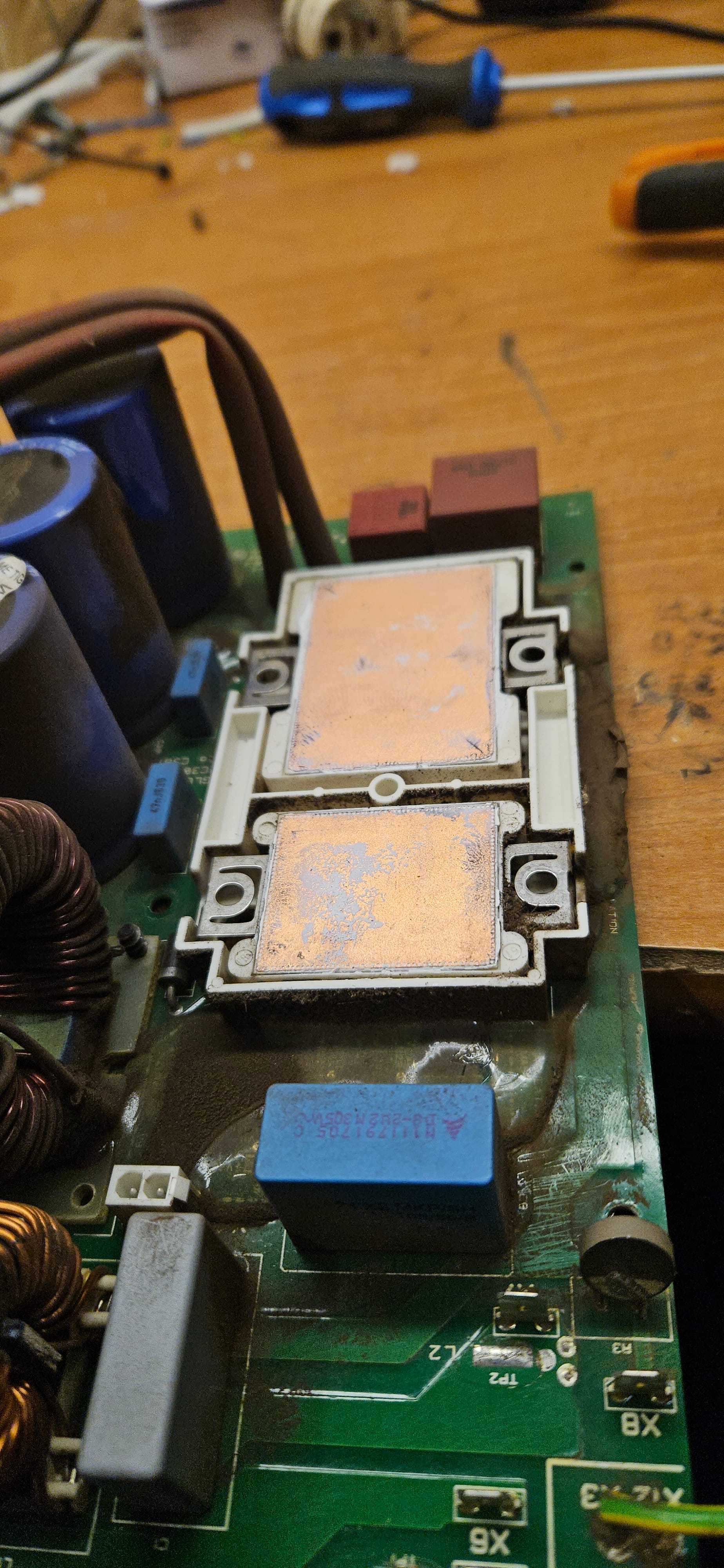

First measurement points suggested for the power stage - dead short. The main IGBT bridge and the driver circuitry were completely toasted.

In a perfect world, I’d just search TME, Mouser or DigiKey, order necessary parts, solder, test and mark as done.

I pulled the part numbers, but the search results were rather sad:

• IGBTs: Marked as Obsolete.
• Replacement Z001 boards: Nowhere to be found in the secondary market.

Final thoughts: Heading to welding heaven

It’s always a tough call to make, but part of being a responsible tinkerer is knowing when a project has reached a dead end. When the core power components of an inverter welder are obsolete and the manufacturer no longer supplies the sub-assemblies, you're looking at a very expensive paperweight.

The Kemppi Minarc 200evo is a fantastic machine, but this one is officially headed to welding heaven to be stripped for any remaining mechanical parts.

Lesson learned: Always check part availability before you spend three hours chasing traces on a proprietary PCB!
